One of our customers told us that before they switched, they were using a raw 2x4 as a spacer in their dipping cabinet. A piece of construction lumber, sitting in a refrigerated display case, six inches from the product customers were paying a premium for. That is not an unusual story. It is what happens when a cabinet is wider than the boxes going into it and nobody makes a part for the gap.
In This Guide
1. What a Box Guard Actually Is

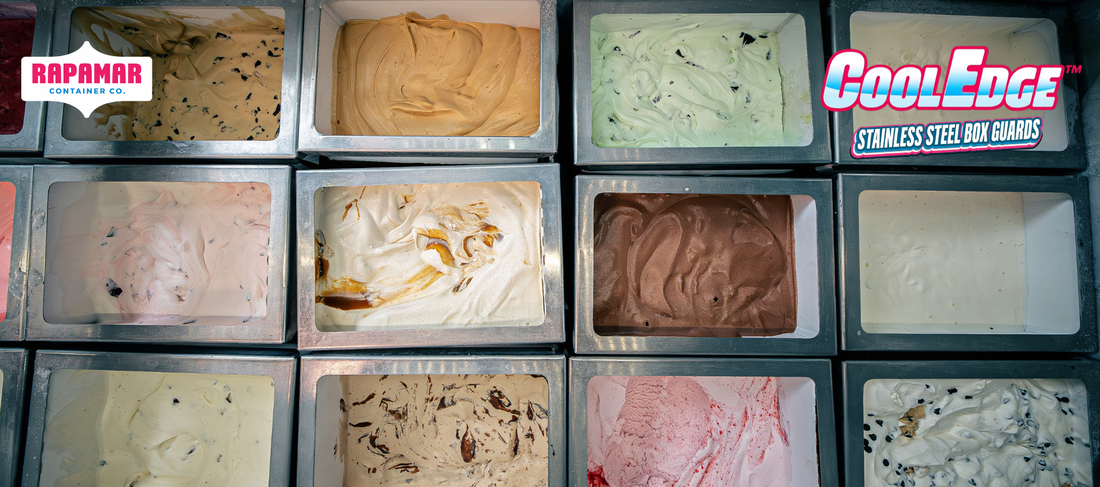

A stainless steel box guard is a metal frame that sits on top of a corrugated container in a dipping cabinet. It surrounds the open top edge of the box, so what the customer sees through the glass is polished steel rather than a cut cardboard edge.
That is the simple description. The useful description is that a box guard does three jobs at once: it finishes the presentation, it sets the spacing between boxes, and it stops the box from sliding while somebody is scooping hard ice cream out of it.
Our version is CoolEdge™ 2.0, patent pending and exclusive to Rapamar. The 2.0 designation is a redesign with smoother edges than the original, which matters more than it sounds like it does when staff are reaching into a cabinet dozens of times a shift.
2. The Five Problems They Solve
Box guards get filed under "presentation," and presentation is genuinely the biggest one. But four other problems come with it, and shops usually do not connect them until the guards are installed and the problems stop.
Presentation
A corrugated container is engineered packaging and it does its job extremely well. What it does not do is look like a finished retail fixture. In a back freezer that is irrelevant. Behind glass, with a customer deciding whether your product is worth eight dollars a scoop, the visible top edge of the packaging is part of the sell.
A steel frame changes what the eye lands on. The customer sees the ice cream and a clean line, not a cardboard edge and whatever is filling the gap next to it.
Spacing
Dipping cabinets are built to standard interior widths. Containers are built to standard container sizes. The two numbers almost never divide evenly, so most cabinets end up with dead space that has to be filled with something or the boxes drift around.
That is where the 2x4 comes from. And the milk crate, and the folded cardboard, and the upside-down lid wedged in the corner. Guards are sized so the spacing is intentional, consistent, and wide enough to get your fingers in to lift a box out.
Shifting while scooping
Hard-frozen ice cream takes real downward force to scoop. A loose container rotates, slides toward the back, or tips against its neighbor. Staff then have to hold the box with one hand while scooping with the other, which is slower and harder on wrists across a long shift.
Guards hold the container in position so the scoop is the only thing moving.
Edge wear
The top edge of a display container takes the most abuse in the whole operation. Scoops hit it, hands grab it, product drips down it, and it sits in the most humid part of the cabinet. It is also the part everybody can see.
Steel takes that contact instead of the board.
Cleaning
A cardboard edge cannot really be sanitized. You can wipe it, and it will absorb some of what you wiped and stay damp. A polished stainless surface wipes clean and dries, which matters for a part that sits in a food display area and gets touched constantly.
3. Why Type 304 Stainless Steel
The material spec is not marketing language. Each part of it is doing something.
Type 304. This is the chromium-nickel stainless grade that commercial kitchens standardize on for food contact surfaces, and it is the reason your prep tables, sinks, and worktops are almost certainly the same alloy. It resists corrosion, it does not react with food, and it holds up to repeated cleaning with commercial sanitizers. In a display freezer, where you have constant humidity, condensation, and repeated temperature cycling every time the lid opens, corrosion resistance is the whole ballgame. A cheaper grade rusts at the seams and you replace it.
20 gauge. A specific thickness, chosen as a balance. Thin enough to lift and reposition easily during a cabinet change, thick enough to hold its shape rather than flexing out of square when a box is pushed against it.
#3/4 polished finish. A brushed satin finish rather than a mirror. This is deliberate. Mirror-polished steel looks spectacular for about a day and then shows every fingerprint and every micro-scratch. A brushed finish stays looking consistent in a working cabinet that gets handled all day.
- Corrosion resistant in a humid, temperature-cycling display case
- Non-reactive with food product
- Stands up to commercial cleaning chemicals
- Holds shape under repeated handling
- Hides fingerprints and wear better than a mirror finish
4. Who Needs Them, and Who Does Not
We would rather you skip these than buy them for a setup where they do nothing. Here is the honest split.
Worth it
- Scoop shops running rectangle containers in a customer-facing dipping cabinet
- Anyone currently using lumber, crates, or folded cardboard as cabinet spacers
- Shops where containers shift or rotate during scooping
- Premium or small-batch brands where the cabinet is part of the brand experience
- Operations rotating containers frequently enough that easy removal saves real time
Skip it
- Back-of-house storage only, where no customer ever sees the container
- Round or octagon formats, since guards are built for rectangles
- Gelato operations running open display pans rather than corrugated rectangles
- Cabinets where your containers already fit wall to wall with no gap
Worth being clear about one thing: a box guard is a presentation and handling upgrade. It is not a food safety requirement and it does not change how your packaging performs in storage or transport. If your containers are failing in the freezer, that is a board and coating question, and our cold chain packaging checklist is the better place to start.
5. Fit, Sizing, and Setup
CoolEdge guards are sized to sit on top of our heavy-walled corrugated rectangle containers, and they fit across all of our rectangle sizes. That single-format compatibility is intentional, because it means a shop running more than one rectangle size does not need to inventory different guards for each.
Setup is nothing. The guard sits on the assembled container. There is no tool, no fastener, and no modification to the cabinet. When you pull a container for rotation, you lift the guard, swap the box, and set the guard back down.
Two things to work out before ordering:
- Count your cabinet positions. How many containers actually sit in the display case at once, across every cabinet you run.
- Confirm you are on rectangles. If you run a mix of rectangles and round tubs, the guards cover the rectangle positions only.
If you are not sure which container format fits your cabinet in the first place, our guide to ice cream container sizes in gallons and liters works through cabinet fit by format.
6. Box Guards vs the Alternatives
Most shops are already solving the spacing problem somehow. Here is how the options actually compare.
| Approach | Presentation | Holds Box in Place | Cleanable | Notes |
|---|---|---|---|---|
| Nothing | Cardboard edge visible | No | Not really | Boxes drift and rotate during scooping |
| Wood spacer | Poor | Partly | No | Porous material in a food display area |
| Folded cardboard | Poor | No | No | Absorbs moisture, collapses, replaced constantly |
| Plastic tubs | Acceptable | Yes | Yes | Requires washing, drying, and storage labor |
| Stainless box guards | Retail finish | Yes | Yes | One-time purchase, reused indefinitely |
The comparison people ask about most is the last two rows. Switching to plastic tubs solves presentation and shifting, but it trades a packaging cost for a labor cost: every tub has to be emptied, washed, dried, and stored. Guards let you keep the corrugated workflow, where the container ships flat, assembles in seconds, and gets recycled at the end, while still getting the finished look. We broke that trade-off down fully in RAPASTACK vs traditional plastic tubs.
The other thing worth weighing: guards are bought once. Cardboard spacers get replaced. Lumber never should have been in there. A stainless part used in a display cabinet has a service life measured in years, so the per-season cost drops every year you own it.
See Them in Your Own Cabinet
CoolEdge™ 2.0 guards start at $105 and fit every size of our rectangle container. Take a look at the CoolEdge product page, or get in touch and tell us your cabinet dimensions and container sizes. We will tell you straight whether guards make sense for your setup.
FAQ
What is a stainless steel box guard?
A stainless steel box guard is a metal frame that sits on top of a corrugated ice cream container inside a dipping cabinet. It surrounds the open top edge of the box so customers see polished steel instead of a cut cardboard edge. It also sets consistent spacing between containers and keeps each box from shifting while staff scoop.
Do box guards fit any ice cream container?
CoolEdge guards are built to fit Rapamar heavy-walled corrugated rectangle containers, and they fit across all of our rectangle sizes. They are not designed for round or octagon formats. If you run a mix of formats, the guards cover your rectangle positions only.
Why stainless steel instead of plastic?
Type 304 stainless is the grade commercial kitchens standardize on for food contact surfaces. It resists corrosion in the humid, temperature-cycling environment inside a display freezer, does not react with food, and stands up to commercial cleaning chemicals. It also holds its shape under constant handling and has a service life measured in years rather than seasons.
Do I still need box guards if my containers fit my cabinet already?
Probably not for spacing. If your containers sit wall to wall with no gap and no shifting, the spacing problem is already solved. The remaining reasons to consider guards are presentation, protecting the top edge from scoop and hand contact, and having a surface you can actually sanitize.
Are box guards easy to clean?
Yes. The #3/4 polished finish wipes clean and dries, unlike a cardboard edge that absorbs moisture and stays damp. The brushed finish is also chosen specifically because it hides fingerprints and light scratching better than a mirror polish would in a cabinet that gets handled all day.
How many box guards do I need?
One per container position in your display cabinet. Count how many containers actually sit in the case at once across every cabinet you run, and confirm those positions are rectangles rather than round tubs.
Will box guards work in any dipping cabinet?
They sit on top of the container rather than attaching to the cabinet, so there is no tool, fastener, or modification involved. The fit question is about your container format, not your cabinet brand. If you are running rectangles, send us your cabinet dimensions and container sizes and we will confirm before you order.
Do box guards replace the container lid?
No. Guards are for containers in active display service with the top open for scooping. Lids are still what you use for storage, transport, and any container not currently in the case.
